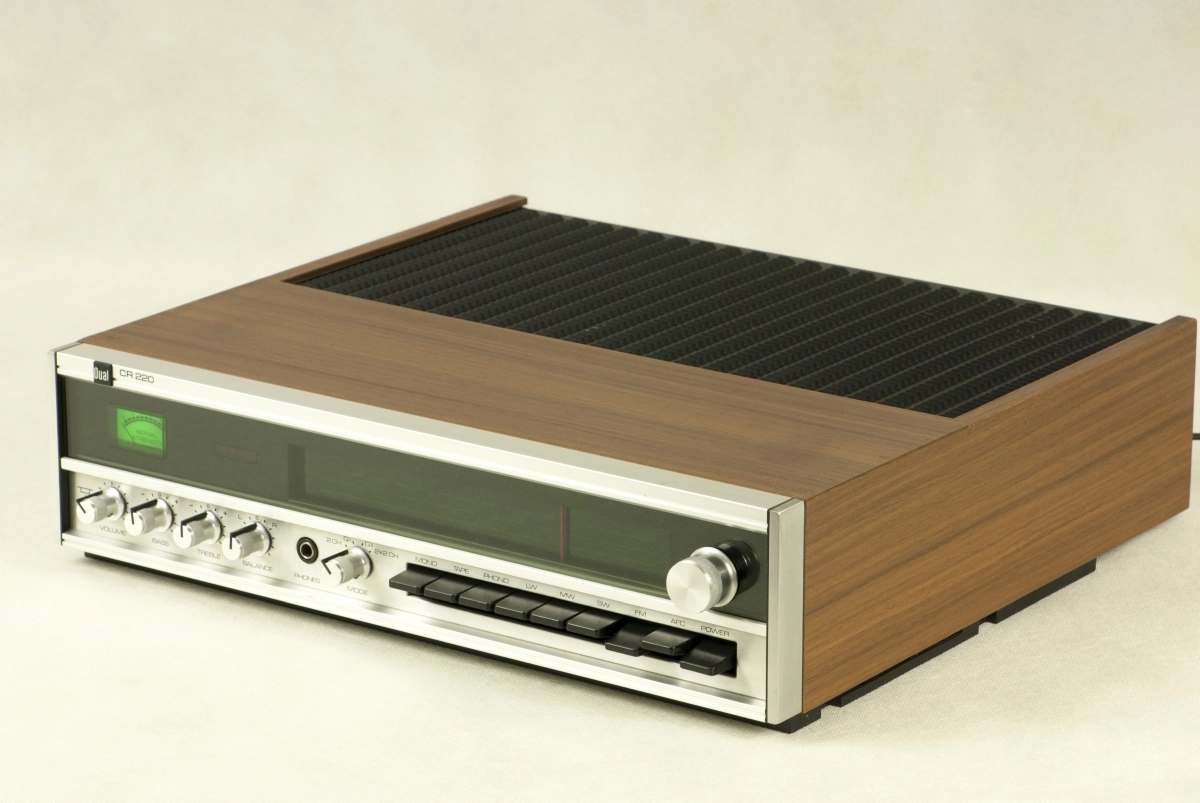

HiFi Stereo Receiver DUAL CR 220
Dual CR 220 - receiver (amplifier and radio) - manufactured in the mid-1970s. Solid equipment with a pleasant sound and a classy design from those years. Fully functional. It has the ability to connect a quadraphonic decoder.
The whole thing is functional, after a full service inspection. Radio reception works cleanly, the scale has a pleasant, green backlight. The tuner has automatic frequency control (AFC). The amplifier works flawlessly, both channels play evenly. The potentiometers do not creak, they are functional. The headphone socket is functional. The equipment has a "Tape" input that allows you to connect a tape recorder or other device (e.g. using the appropriate plug adapter: computer or MP3 player).
The knobs and front panel are made of aluminum and the housing is in the original "walnut" veneer.
INFO: in the case of delivery to the USA, upon request, we provide free adaptation of the equipment to the electrical voltage of 110-125V/60 Hz (the same applies to other countries, where the electrical voltage is 110-125 V AC/60 Hz).
We will also include an adapter for the electrical socket (EU/US) in the set.
The equipment has been cleaned and adjusted, it is fully functional. All backlight bulbs have been replaced with new ones. All electrolytic capacitors of small capacity and damaged transistors of the final stage have also been replaced with new ones. A new power cord and anti-interference capacitor have been installed. The necessary adjustments of parameters have been made in accordance with the manufacturer's service instructions.
The amplifier plays great and presents itself excellently. The equipment has normal traces of use, minor scratches and abrasions on the housing and front panel. Overall, it is in very good condition.
The Dual CR 220 allows you to connect 4 loudspeakers and is adapted to work with an appropriate decoder enabling listening to quadraphonic records (function not tested). Speakers connected to the equipment should have an impedance of 4 - 16 Ohms.
Downloads:

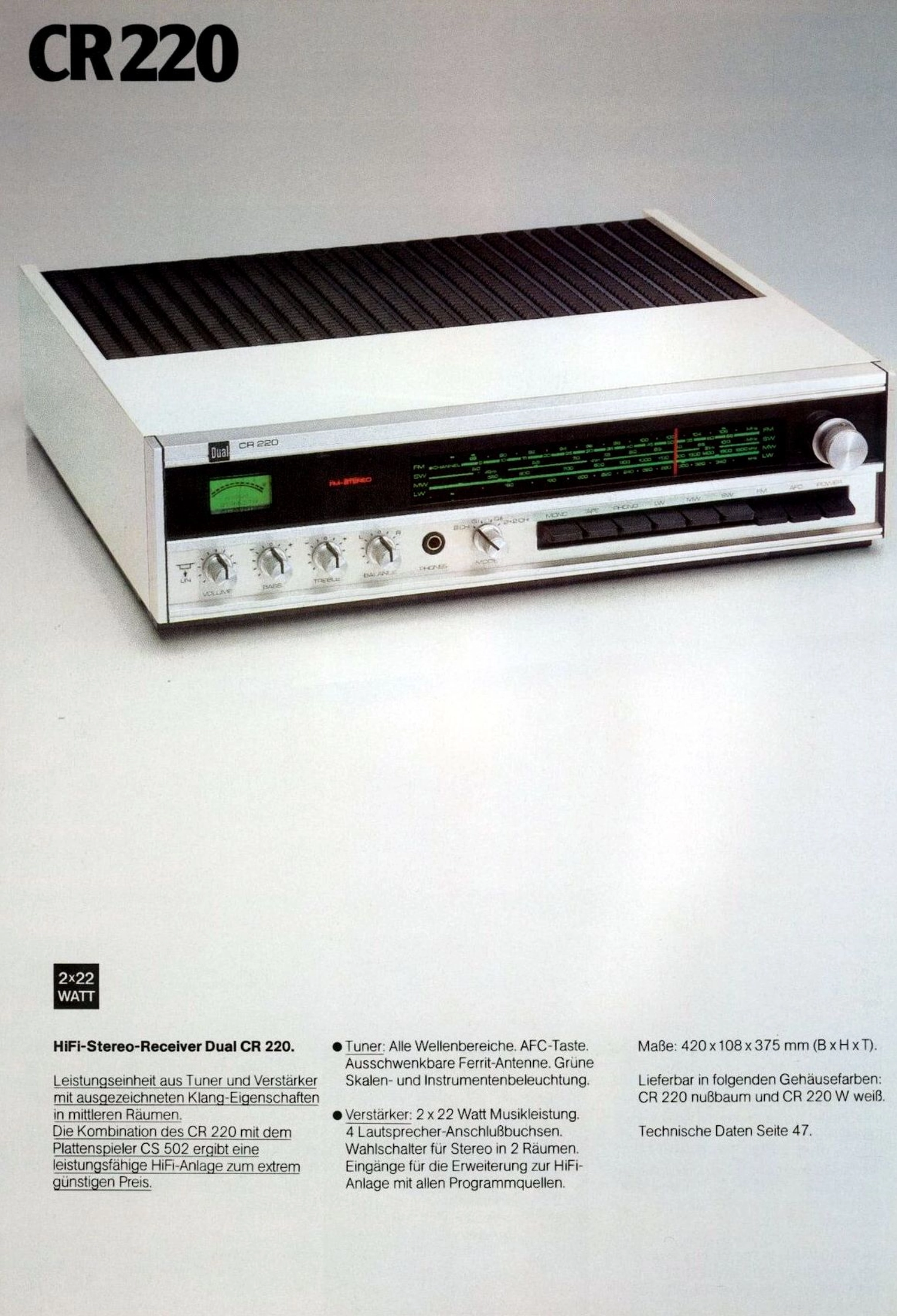

Dual CR 220 brochure (.PDF): download (0.87 MB)

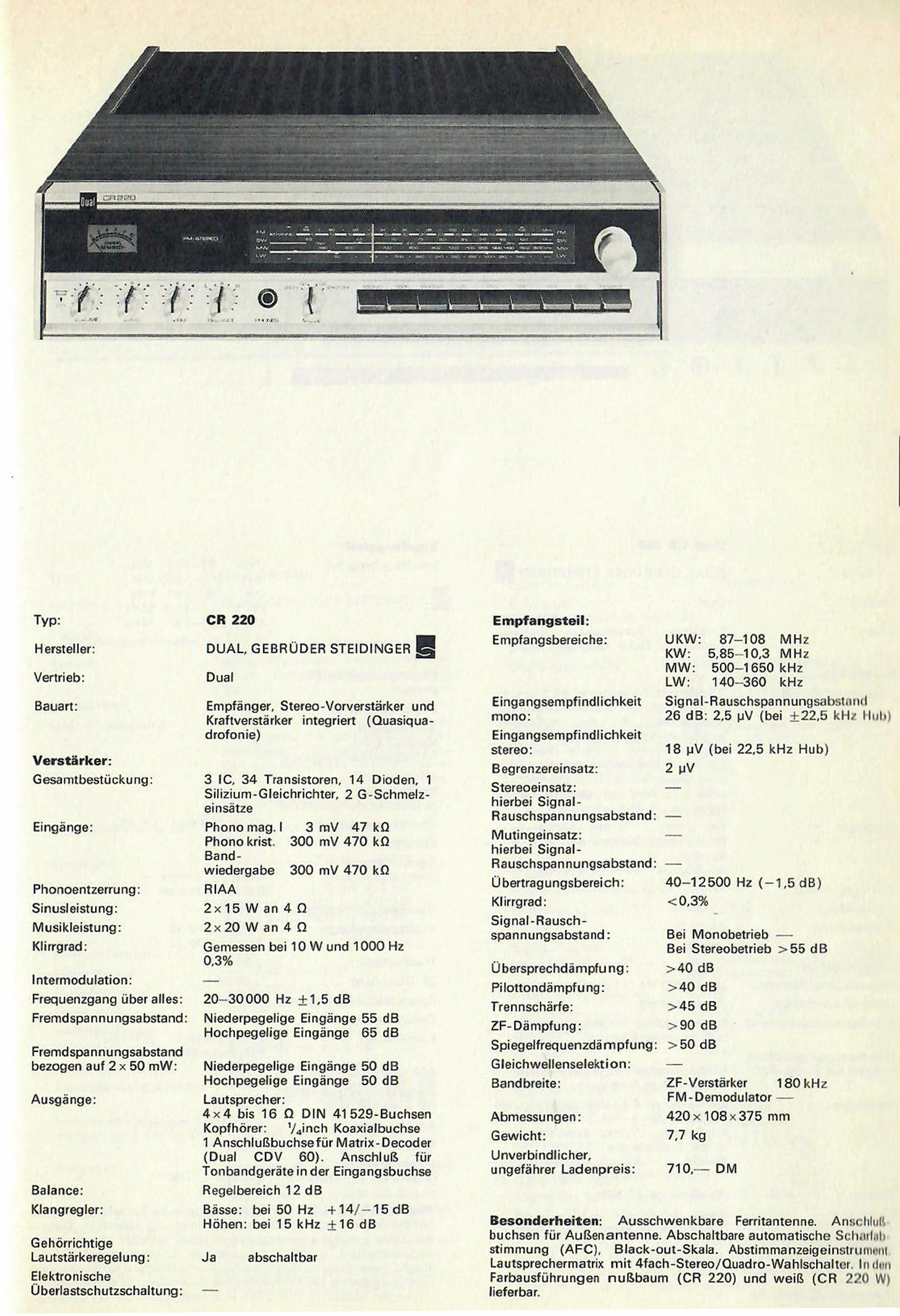

Dual CR 220 technical data (.PDF): download (0.9 MB)
(source: vinylengine, www.hifi-archiv.info)
BASIC TECHNICAL DATA - Dual CR 220:
Power supply: 110 - 125 V, 220 - 240 V
Music power: 2 x 20W (4 Ohms)
Radio: stereo, Hi-Fi (DIN 45500), FM range 87-108 MHz
Wave range: FM (87 MHz - 108 MHz); LW (140 - 360 KHz), MW (500 - 1650 kHz), SW (5.85 - 10.3 MHz);
Sockets: 1x Quadro (DIN 5-pin), 2x Phono Out (DIN 5-pin) - separate for ceramic and MM cartridges, 4x speaker cabinets - 4 Ohm (DIN 2-pin), 1x headphones (6.3 mm jack)
Antenna input: 1x FM, 240 Ohm (balanced); 1x AM
Dimensions: approx. 420 x 390 x 110 mm (approx. 16.5 x 15.35 x 4.3")
Weight: approx. 7.5 kg (approx. 16.5 lb)
THE SET INCLUDES:
– Dual CR 220 receiver – 1 pc.
– socket adapter: 5 DIN - RCA/Chinch – 1 pc.
INFO: in the case of delivery to the USA, upon request, we provide free adaptation of the device to the electrical voltage of 110-125V/60 Hz. The same applies to other countries, where the electrical voltage is 110-125 V AC/60 Hz).
We will also include an adapter for the electrical socket (EU/US) in the set.
INFO:
- please remember that the colors visible in the photos depend on the individual monitor settings and may differ from the actual ones.
