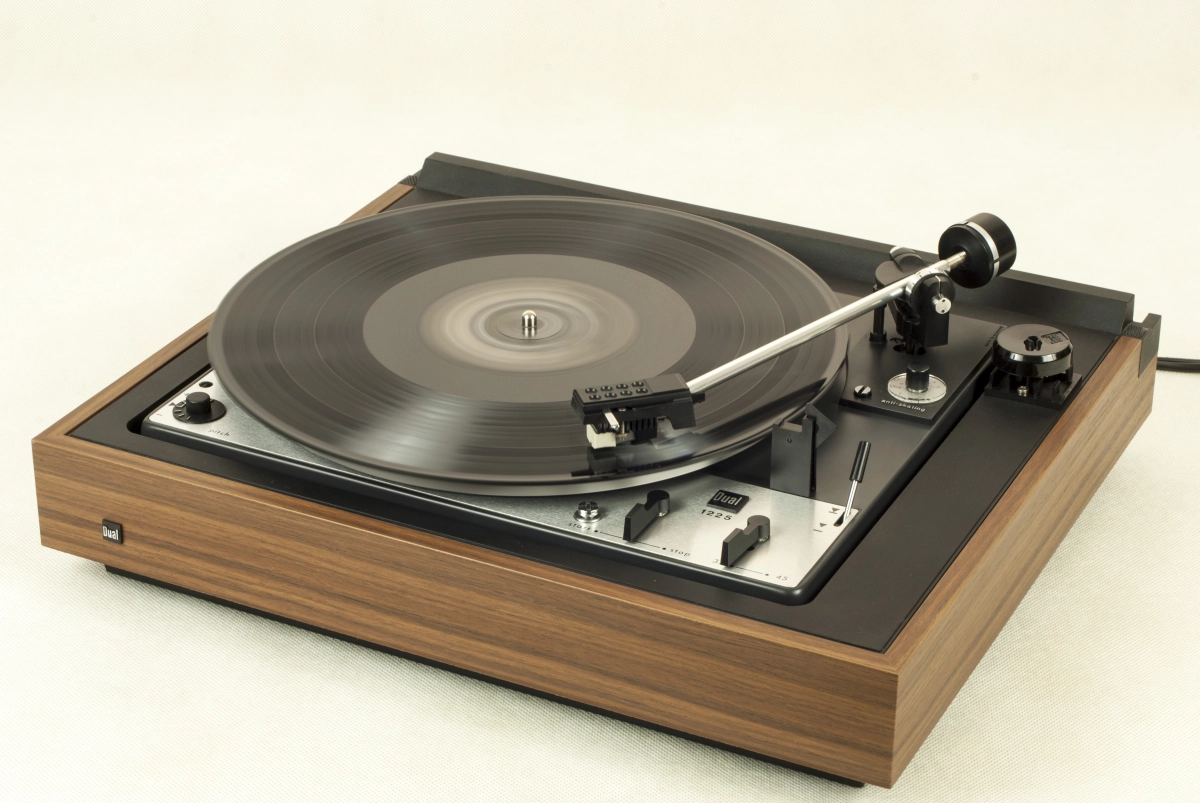

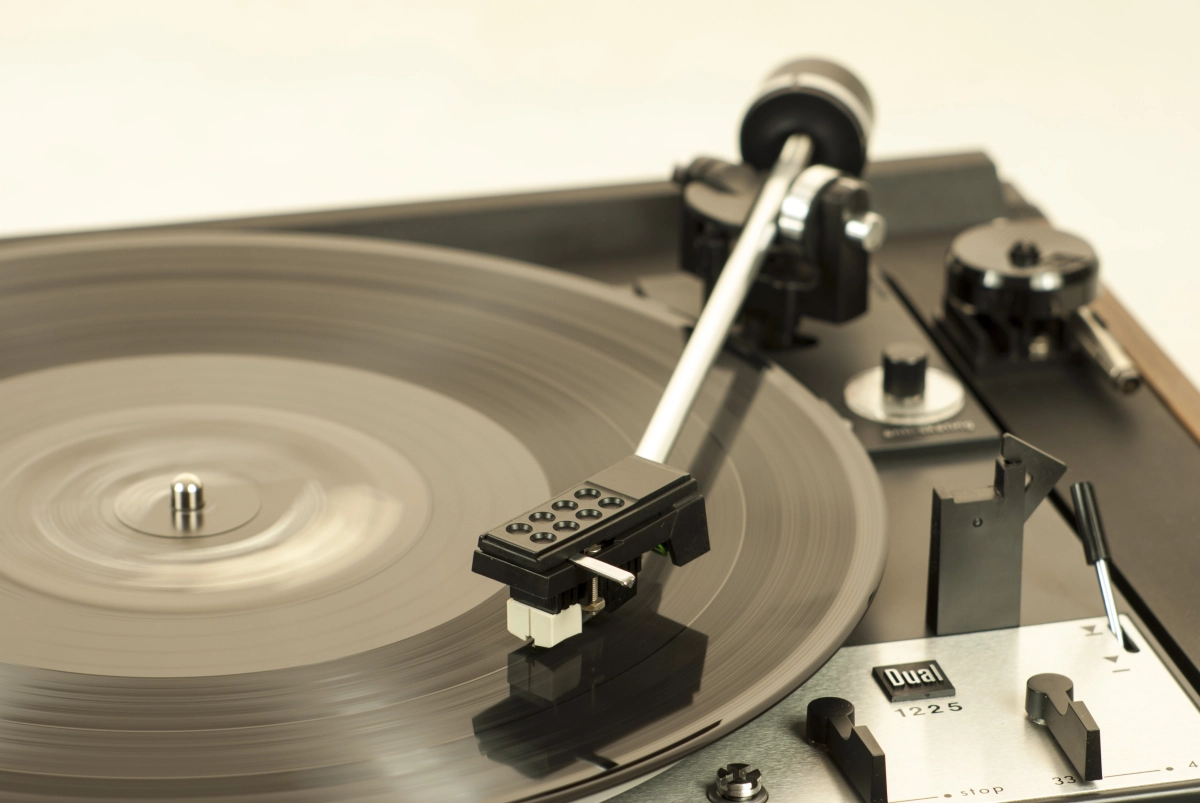

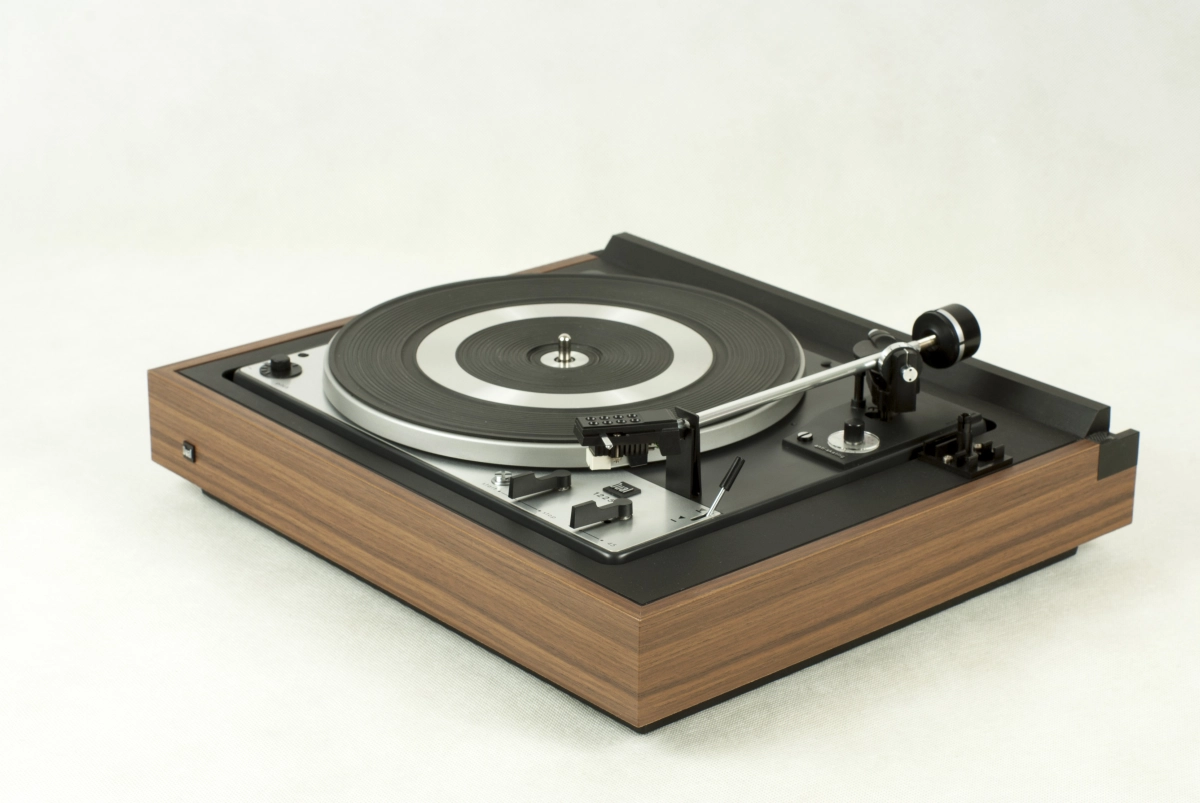

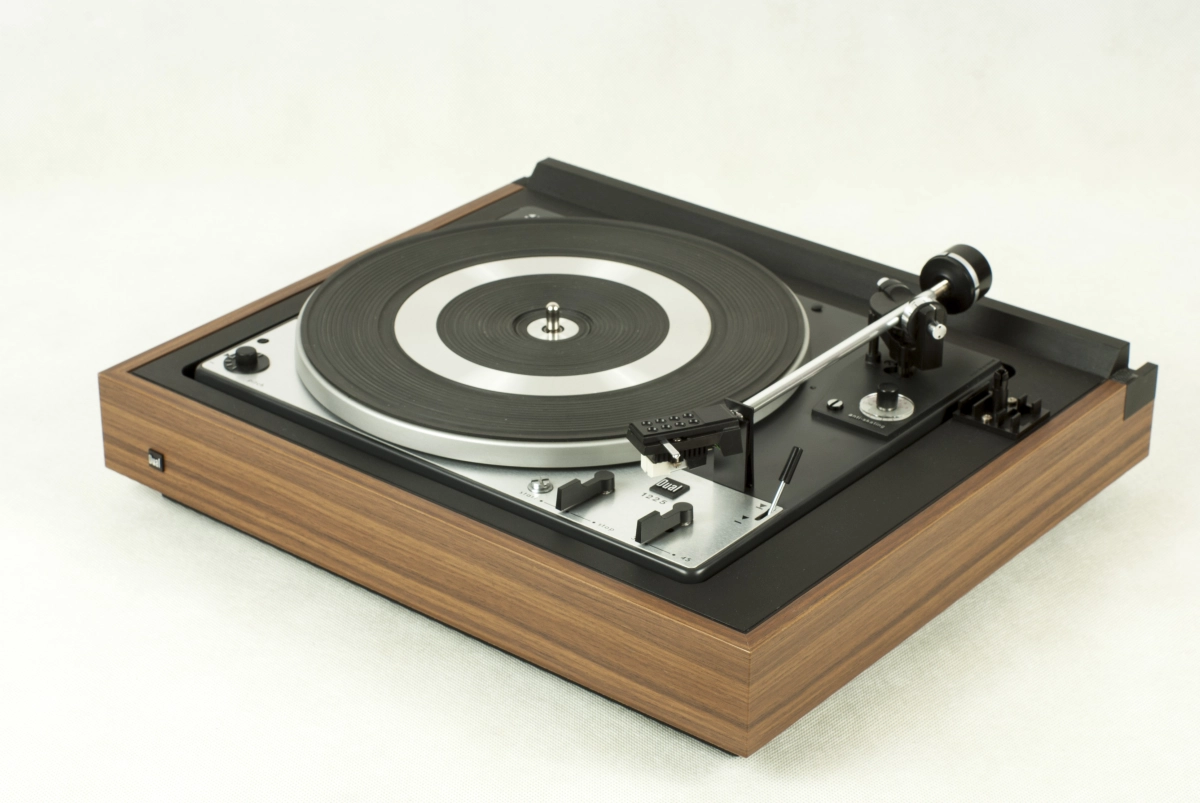

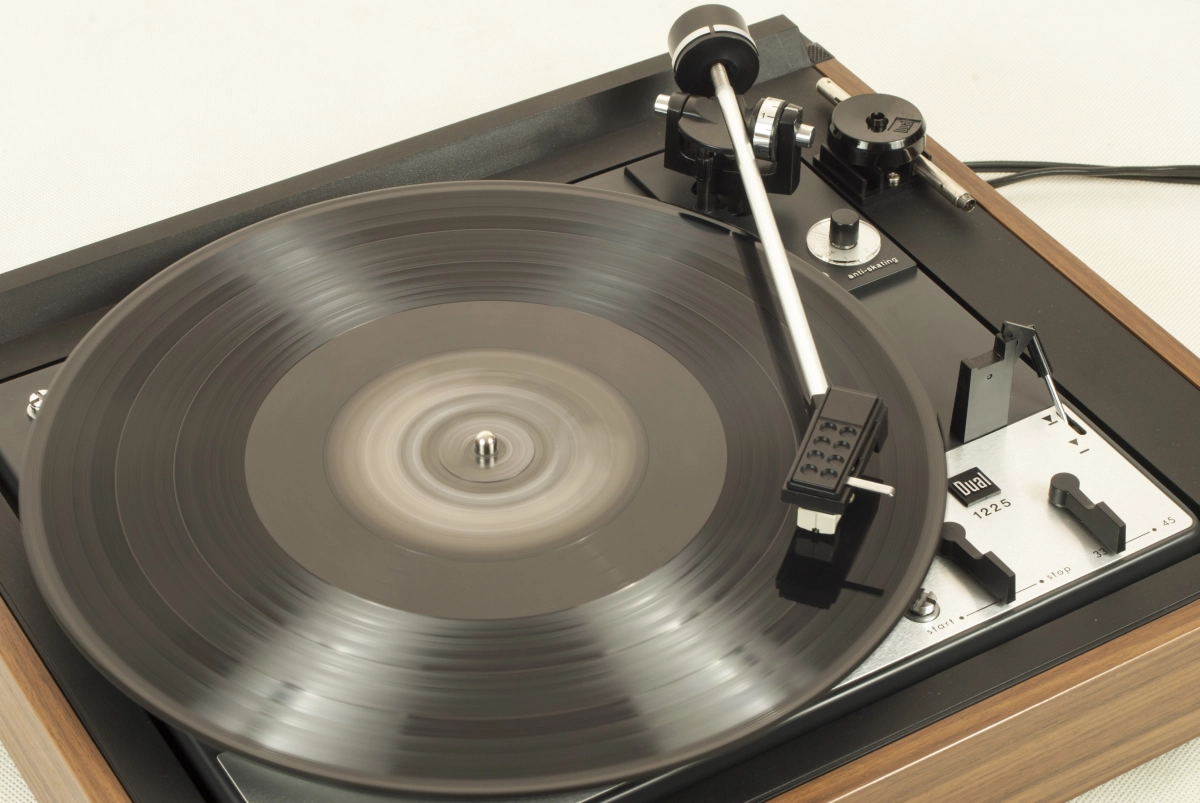

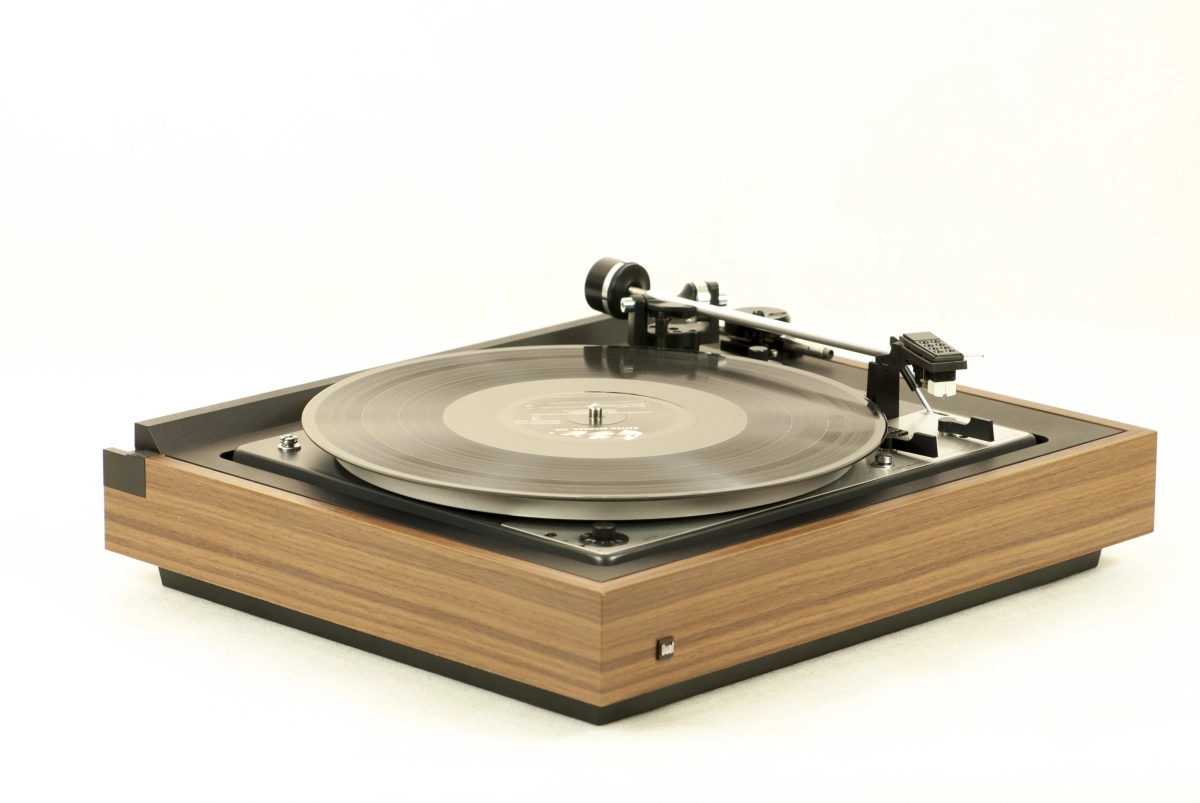

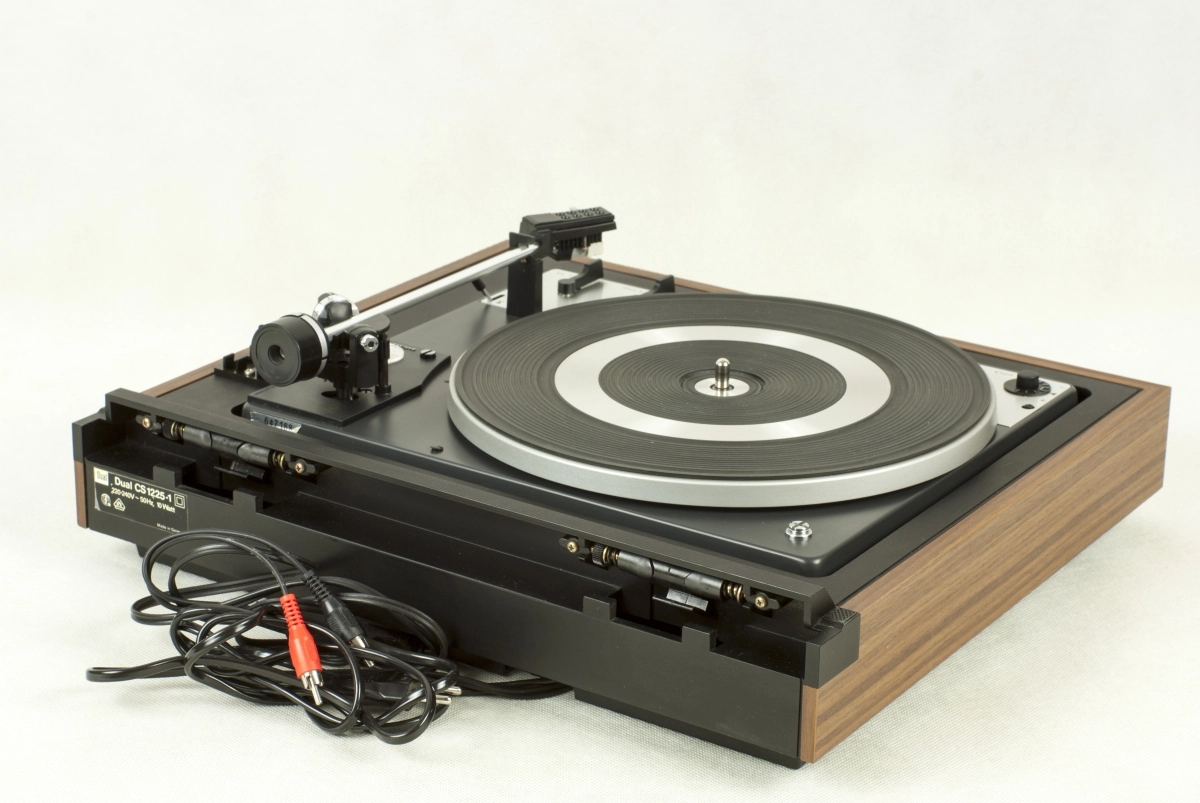

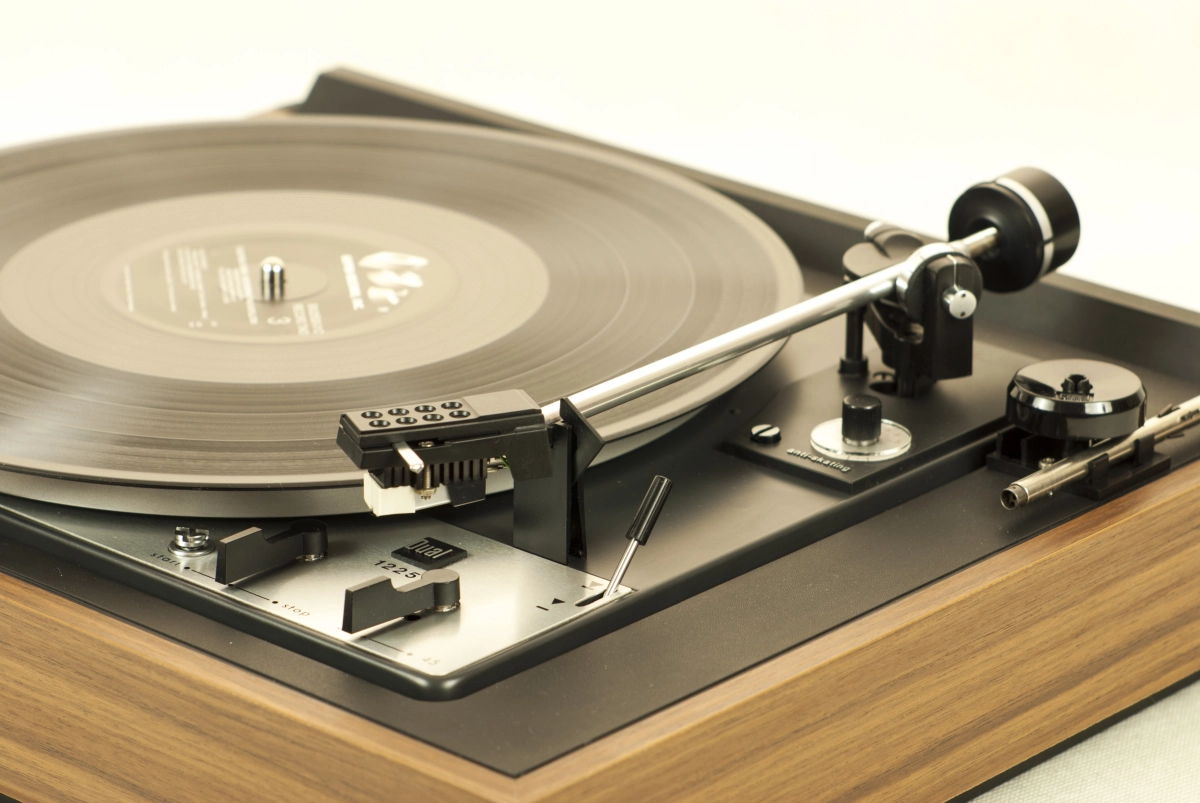

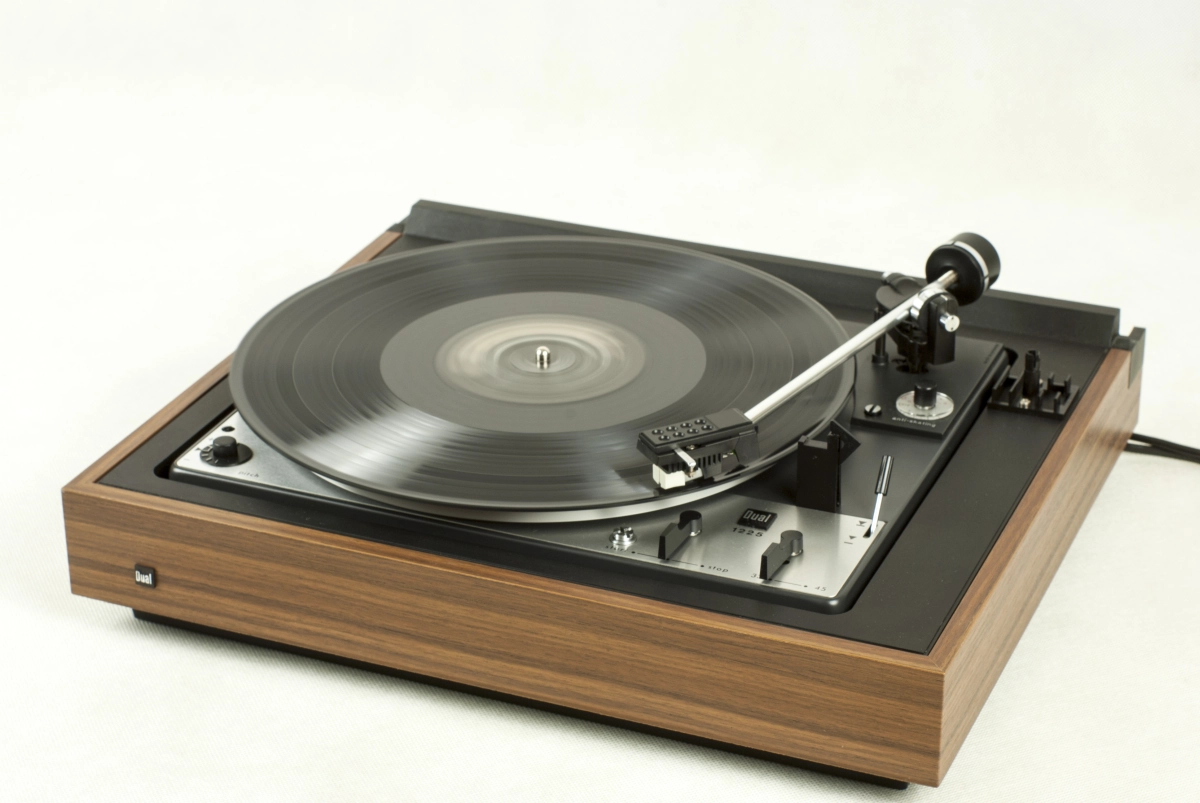

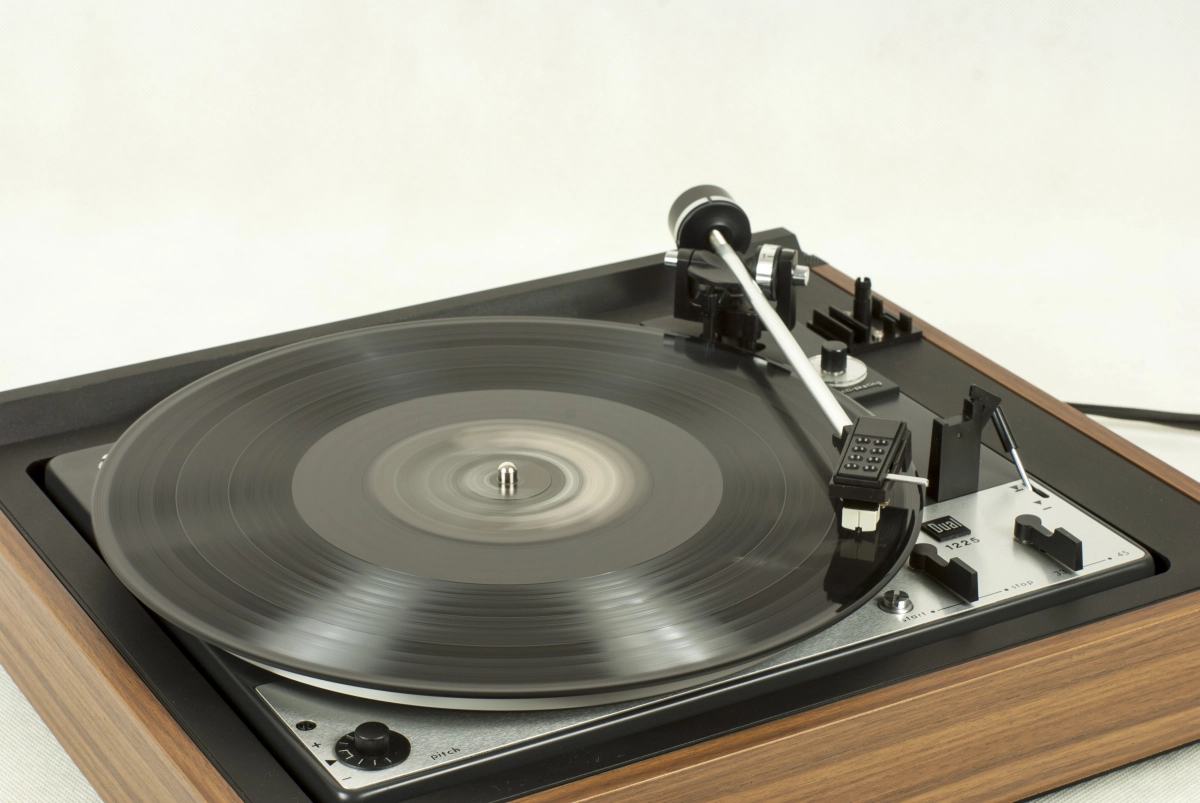

DUAL 1225 turntable, original plinth
Dual 1225 - a turntable with a traditional idler drive, manufactured in the early 70s of the last century.
Here is the version with the original Dual plinth (walnut). It offers pure sound combined with the classic design of those years. Functional, after a complete service inspection.
Dual 1225 - a turntable with a traditional idler drive, manufactured in the early 70s of the last century. Here is the version with the original Dual plinth (walnut). It offers pure sound combined with the classic design of those years. Functional, after a complete service inspection.
A record changer spindle can be installed in the turntable - this allows for automatic listening to several records, one after the other (the spindle is included with the turntable).
The turntable has undergone a comprehensive inspection and renovation - the old grease has been removed, the entire mechanism has been cleaned and re-lubricated.
The engine has undergone a complete technical inspection and lubrication - it maintains the correct revolutions. The arm lift grease has been replaced with a new one - the lift works with the appropriate resistance.
The turntable is functional, all functions work correctly. Dual 1225 - is fully automatic: it allows you to start with one lever, after the end of playback the arm automatically returns to the starting position. You can also initiate start and stop bypassing the automation.
It allows you to listen to vinyl records at two speeds: 33 1/3, 45 rpm. Additionally, the turntable is equipped with "Anti-Skating" and "Pitch-Control" knobs - giving greater control over the reproduced sound.

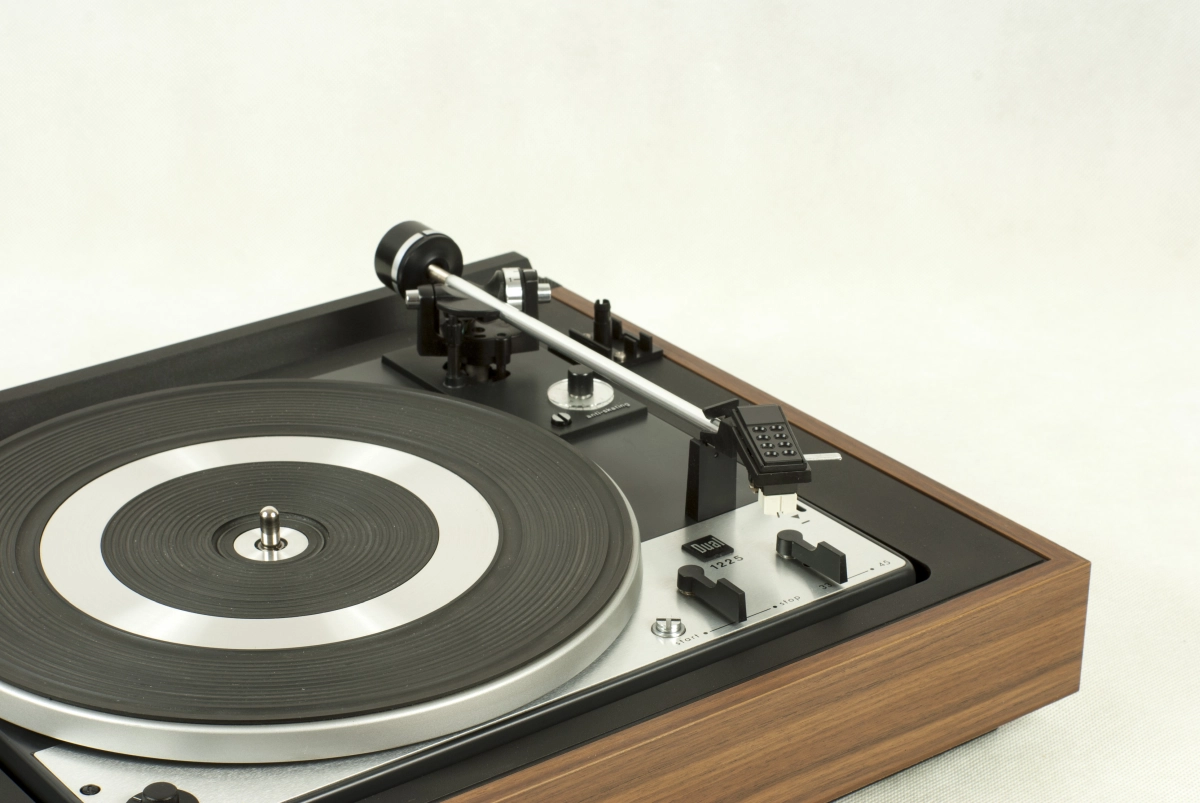

The original Audio-Technica AT-66 cartridge was installed, along with a used spherical-cut needle. The cartridge and needle have been checked and are in very good technical condition (data regarding the cartridge and needle are given based on electrical measurements and microscopic examinations).
The headshell can be used to mount all cartridges with a 1/2 inch mount, weighing from 2 to 10 g (0.07 - 0.35 oz) including mounting elements.

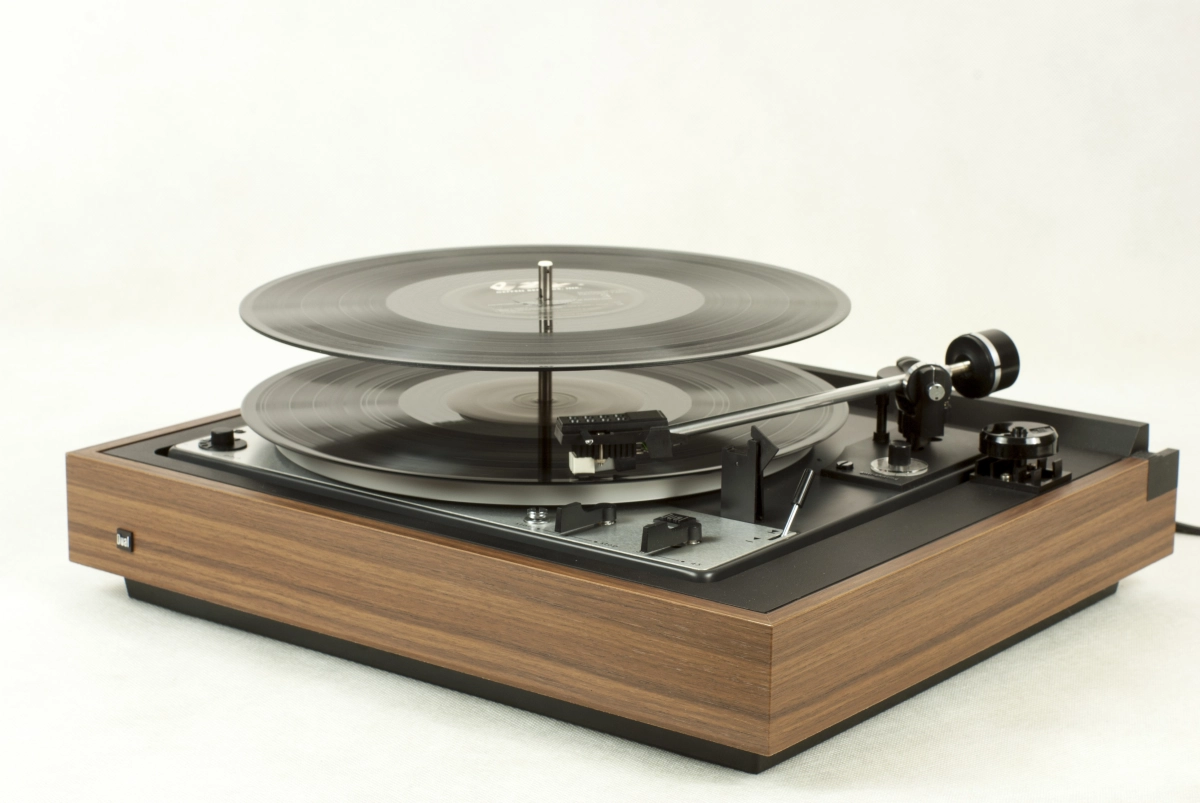

After using the appropriate element (so-called spindle), it is possible to automatically listen to up to 6 records - one after the other. The spindle is included with the turntable.

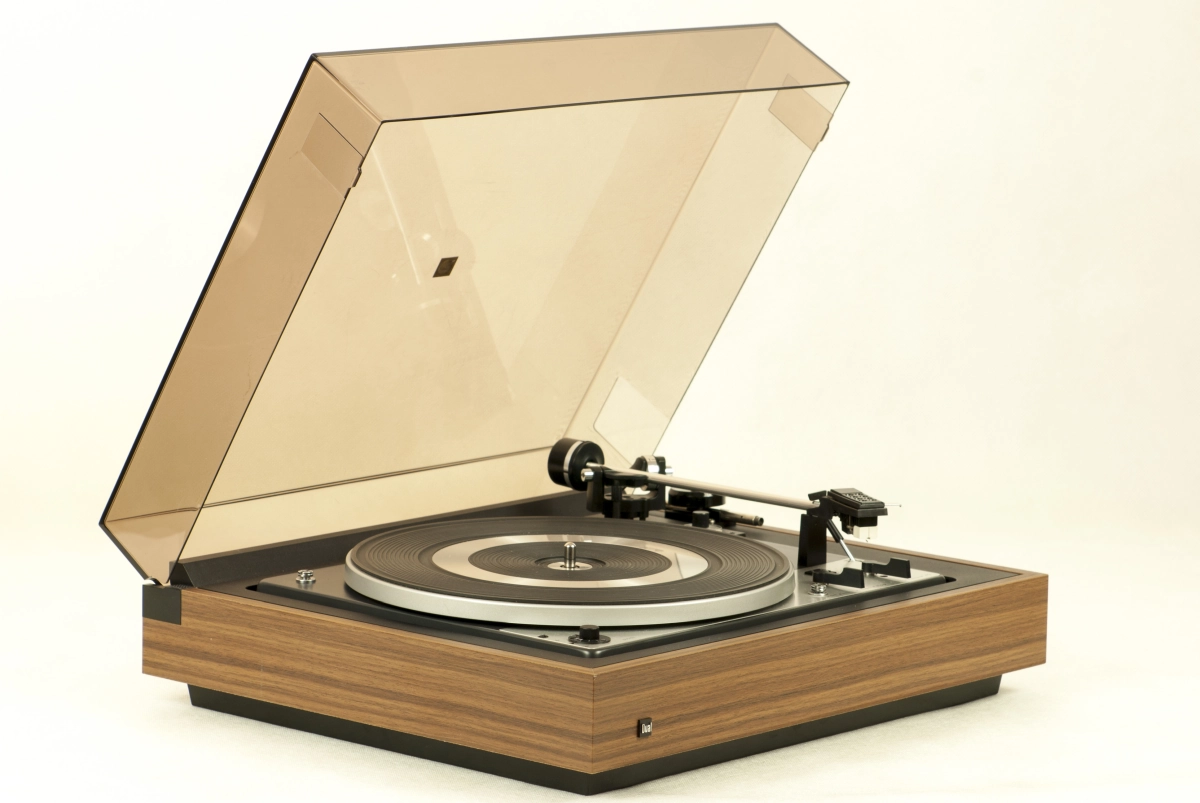

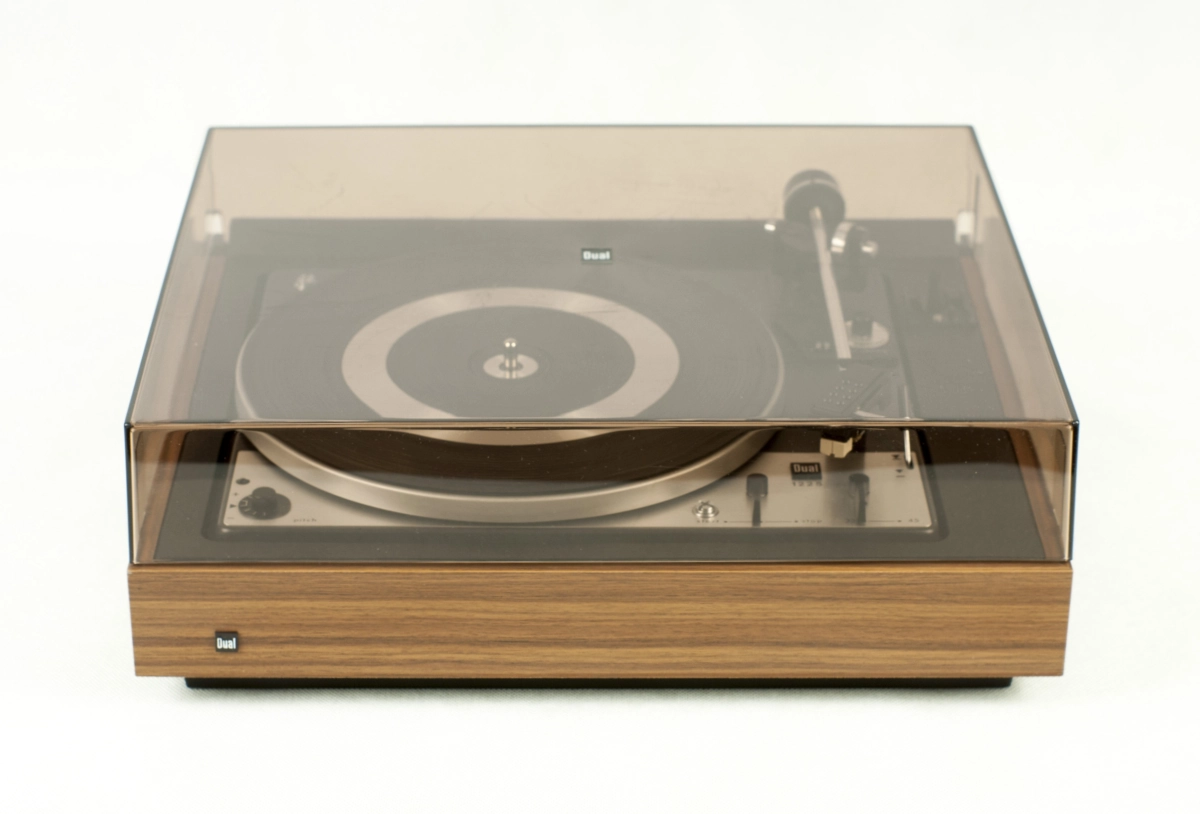

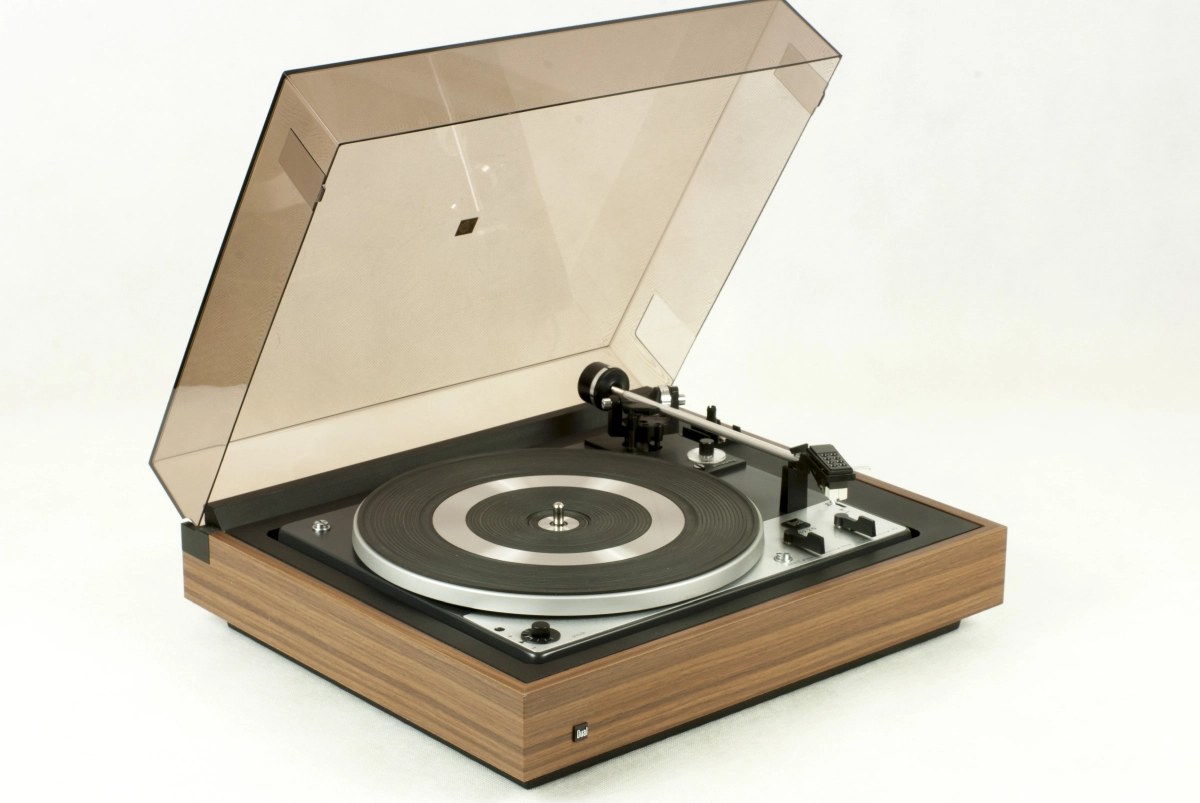

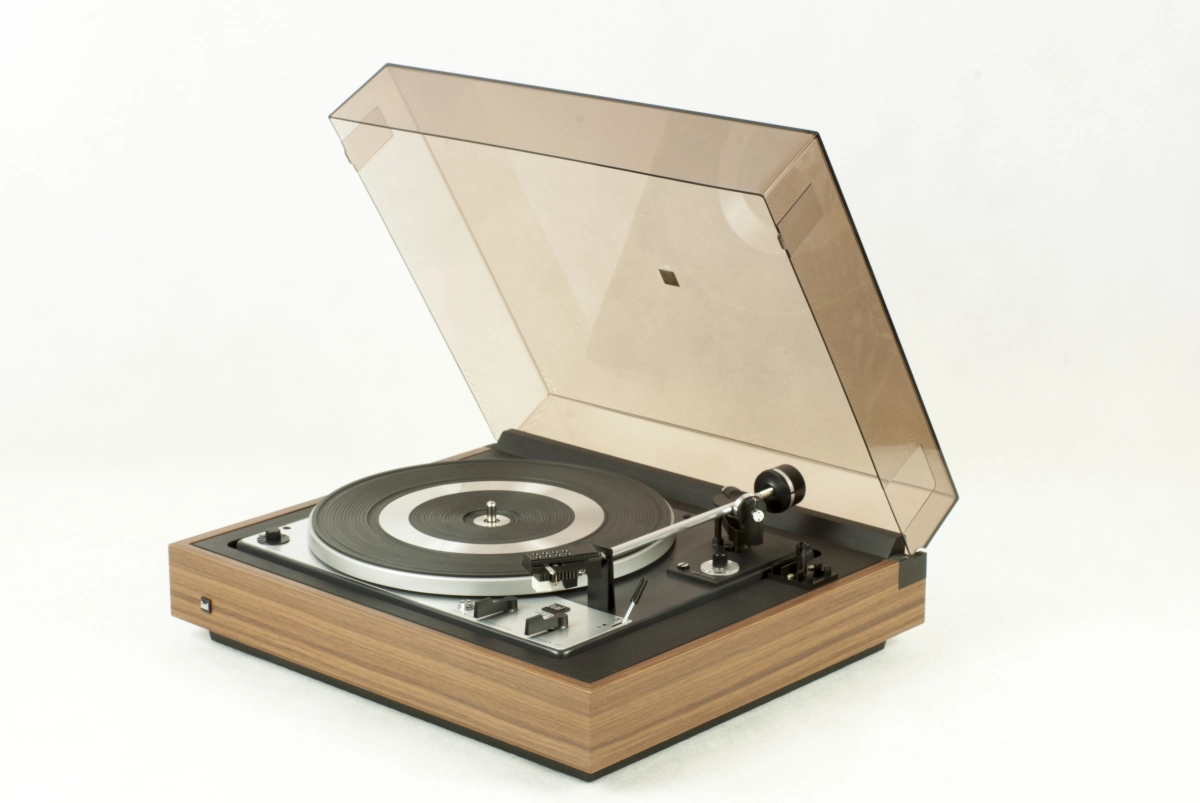

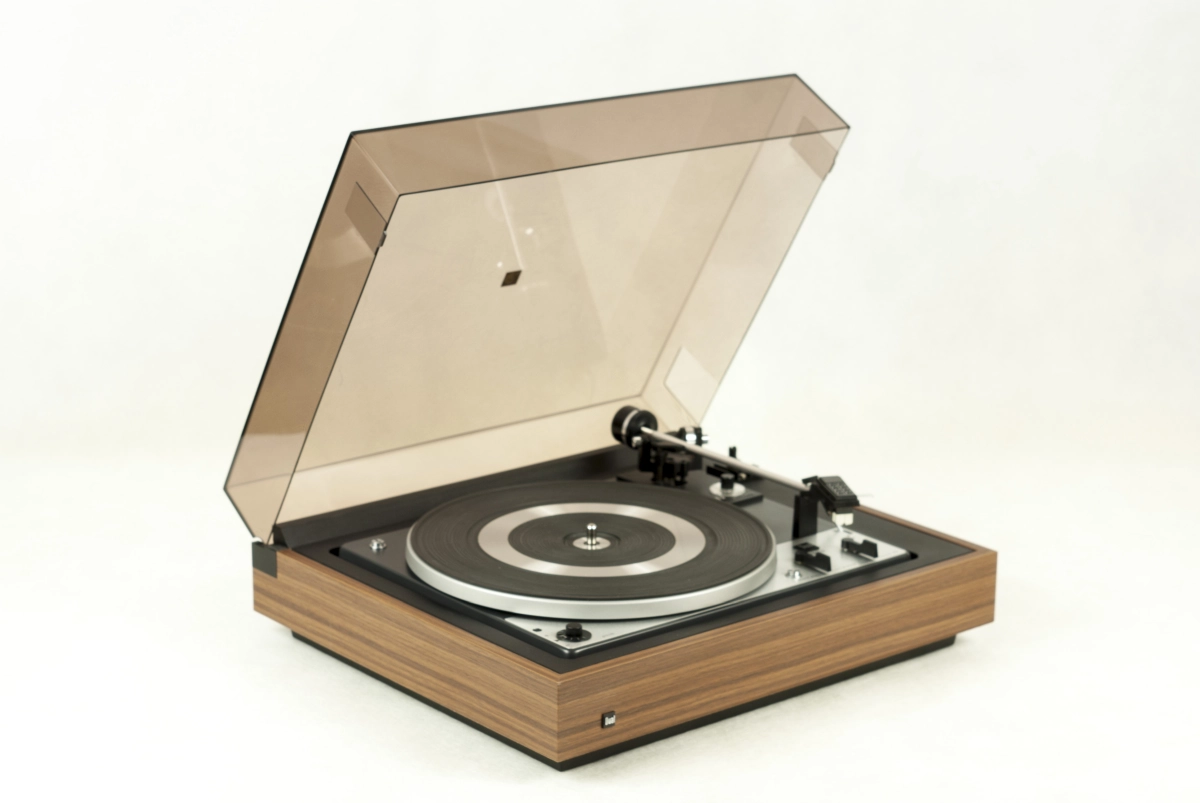

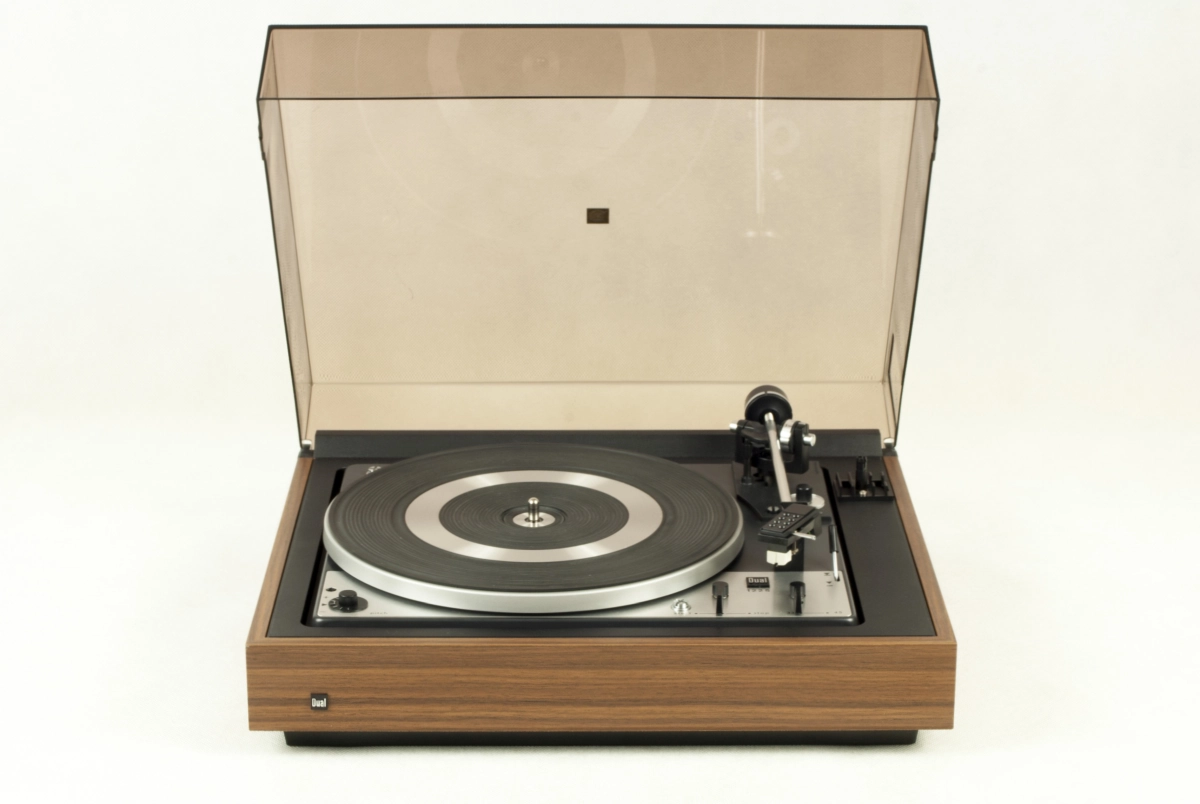

The cover is original, complete, undamaged, has minor scratches and abrasions (visible in the photo), was not polished.
Download:
- Dual 1225 prospect (.PDF): download... (329 KB)
- Dual 1225 manual (.PDF): download... (2.69 MB)
(source: vinylengine, www.hifi-archiv.info)
BASIC TECHNICAL DATA - DUAL 1225
- Power supply: 110 - 130 V, 220 - 240 V; 50-60 Hz - depending on the choice of replaceable engine pulley. It is usually pre-set to 220 V, 50 Hz.
- Motor: four-pole asynchronous motor
- Drive system: idler - speed transferred to the turntable platter by a highly wear-resistant tension wheel,
- Speeds: 33 1/3, 45 rpm,
- Pitch adjustment range: 6% at all speeds (approx. 1 musical semitone)
- Tonearm: aluminum,
- Turntable platter: antimagnetic, 1.45 kg (3.2 lb); diameter: 270 mm (10.63")
- Wow and Flutter: <+/- 0.15% (DIN 45507)
- Rumble (DIN 45500), weighted:> 56 dB.
Dimensions and weight:
Dimensions (L x W x H): approx. 420 x 360 x 150 mm (16.54 x 14.17 x 5.9")
Net weight: approx. 6.5 kg (14.33 lb)
THE SET INCLUDES:
- Dual 1225 turntable in the original Dual plinth (including dust cover) - 1 pc.
- used Audio-Technica cartridge with spherical stylus - 1 pc.
- adapter for singles - 1 pc.
- adapter for audio cables - 5-DIN to RCA/Chinch - 1 pc.
- record changer spindle - 1 pc.
- user manual - 1 pc.
INFO: in the case of delivery to the USA, upon request, we provide free adaptation of the turntable to an electrical voltage of 110-125V/60 Hz along with replacement of the appropriate turntable motor pulley (the same applies to other countries, where the electrical voltage is 110-125 V AC/60 Hz).
We will also include an adapter for an electrical socket (EU/US) in the set.
INFO:
- the vinyl record visible in some photos is not for sale.
- please remember that the colors visible in the photos depend on the individual monitor settings and may differ from the actual ones.
